Akiles Heavy Duty 13-1/2" Coilmac-ECP41 Electric Paper Punching Machine with Foot Pedal for: 4:1 Plastic Coil Bindings & Spines

akiles products

With its heavy-duty punch motor and complete system of functions, the Akiles CoilMac-ECP makes coil binding fast, convenient and professional.

FEATURES:
Round Holes: Standard 4mm round holes.

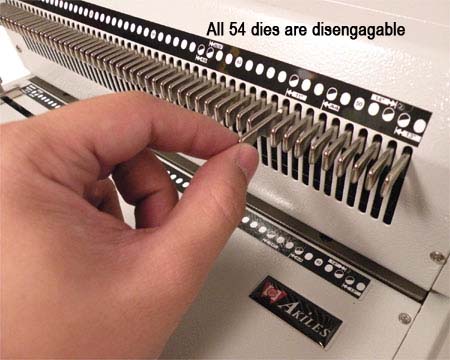

5 Disengageable Pins: Specially designed disengageable positions guarantee a clean punch with most standard paper sizes, making the CoilMac-ECP very simple to use.
STANDARD 4:1 Pitch (0.250”): Standard pitch for coil binding. Punches 43 holes in a 11” sheet.

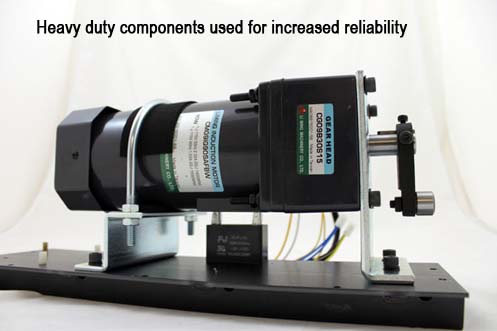

Electric Punch Operation: Powerful punching capability with a simple press of foot pedal.
Extended Single Punching Length (13.5"): With open ends & continuous punch guide to easily punch documents of any length (up to 26").
High Volume Punch Capacity: Suggested up to 25-sheet for 20 lbs paper, or 2.6mm (28-sheet equivalent) for hardboard*, in 13" length (53 holes).
Super Strength Punch Mechanism with exclusive “Precision Guiding System" Blade Set: Cast-hardened & heat-treated steel dies provide superior strength & hardness. Exclusive “precision guiding system" guarantees a sharp & clean perforation everytime.
Electric Reverse (Anti-Jam) Function: For trouble-free punching.
Finish@Coil Compatible: Included mounts allow for a Finish@Coil-M or E1 to be securely mounted on top of the CoilMac-ECP41 or ECP41+ (sold separately). This upgrade will offer operator the electric binding and/or crimping feature, on all coil sizes (up to 50mm).

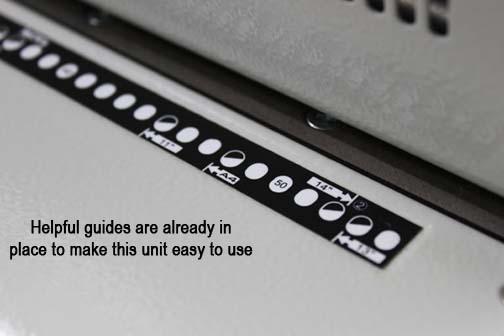

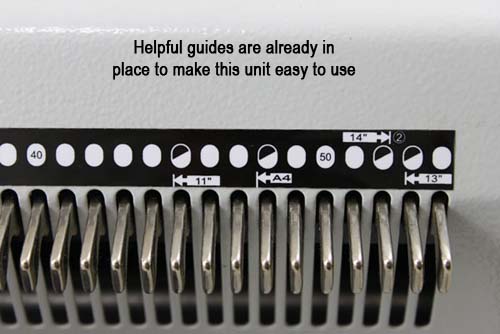

Side Margin Control: Provides an evenly centered punch for all document sizes.
Punching Margin Control: Provides the correct punch-margin-depth for each coil size and maximizes the document's tear resistance.
Open Throat and Continuous Punch Guide: For an easy alignment and punching of longer documents up to 26".
Rugged ALL Metal Construction: Makes it the most reliable & durable coil binding system in its class.
Extra-High-Capacity Waste Drawer
6 Height-Adjustable Non-Skid Metal Feet
ISO9001 & 14001 Quality: Manufactured under ISO9001 & 14001 guidelines for highest quality control & environmental management standards.

Includes Coil Diameter Selector & Premium Coil Crimpers

click images to enlarge
akiles coilmac-ecp41
akiles coimac ecp 41
akiles coilmac ecp details
akiles coilmac
akiles coil binding
akiles binding products
$1,329.00 each item# ACM-ECP41
Quantity:
normally ships within 1 working day
SPECIFICATIONS:
Model: Coilmac-ECP41
Coil Pitch: 4:1
Punching Length: 13.5" (53 holes) with open ends for longer sizes
Punch: electric
Disengaging Dies: 5 dies
Suggested Punching Capacity: Up to 25 sheets for 20 lbs paper
Up to 2.6mm for hardboard
(28-sheet equivalent thickness)
Hole Size : Round (4mm)
Foot Switch : Included
Crimpers: Included
Side Margin Control: included
Depth Margin Control: included
Construction: metal
Weight / volume: 60 lbs & 4.33 CbFt
Warranty: 1 Year
