	Oregon Laminations Company Toll Free 1-800-574-9814 store hours: 7am to 5pm M-F Pacific Time Zone

FREE SHIPPING on this item in the lower 48 states (coupon code presented during checkout)

Akiles Heavy Duty 13" Coilmac - EPI 41 Electric Punching & Binding Machine with Built-In HD Electric Coil Inserter & Foot Pedal for: 4:1 Plastic Coil Bindings & Spines

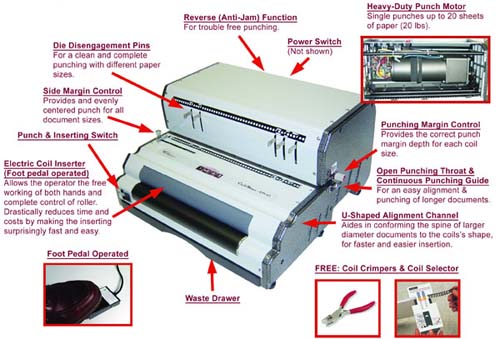

With its heavy duty punch motor, built-in electric coil inserter and complete system of functions, Akiles CoilMac-EPI makes coil binding fast, easy, convenient and professional, making it the ideal partner for commercial volume workloads.

FEATURES:

Round Holes: Standard 4mm round holes.

5 Disengageable Pins: Specially designed disengageable positions guarantee a clean punch with most standard paper sizes, making the CoilMac-ECI very simple to use.

STANDARD 4:1 Pitch (0.250”): Standard pitch for coil binding. Punches 43 holes in a 11” sheet.

Free Coil Crimpers

All Electric Operation: Powerful punching & inserting capability with a simple press of foot pedal.

Extended Single Punching Length (13"): With open ends & continuous punch guide to easily punch documents of any length (up to 26").

High Volume Punch Capacity: Suggested up to 25-sheet* for 20 lbs paper, or 2.6mm (28-sheet equivalent)** for hardboard, in 13" length (53 holes).

Super Strength Punch Mechanism with exclusive “Precision Guiding System" Blade Set: Cast-hardened & heat-treated steel dies provide superior strength & hardness. Exclusive “precision guiding system" guarantees a sharp & clean perforation everytime.

Electric Reverse (Anti-Jam) Function: For trouble-free punching.

Full Length Heavy-Duty Electric Coil Inserter with Double Roller Mechanism: 11-3/8" EPDM roller provides high friction and durability, making this inserter one of the easiest-to-use & most durable. Front-mounted roller position gives operator greater control & improves efficiency. Foot-pedal operated. Plastic & Metal coil compatible.

Industrial-Grade Roller Motor: Heavy-Duty motor (3 times heavier-duty than other similar machines in its class).

U-shaped Alignment Channel: Assists the operator to properly shape the document’s spine, for faster & easier coil insertion.

Side Margin Control: Provides an evenly centered punch for all document sizes.

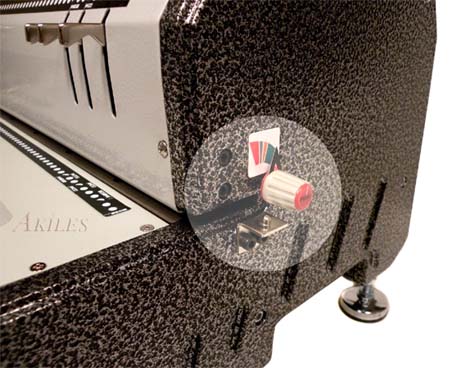

Punching Margin Control: Provides the correct punch-margin-depth for each coil size and maximizes the document's tear resistance.

Open Throat and Continuous Punch Guide: For an easy alignment and punching of longer documents up to 26".

Rugged ALL Metal Construction: Makes it the most reliable & durable coil binding system in its class.

Extra-High-Capacity Waste Drawer

6 Height-Adjustable Non-Skid Metal Feet

ISO9001 & 14001 Quality: Manufactured under ISO9001 & 14001 guidelines for highest quality control & environmental management standards.

Includes Coil Diameter Selector

click images to enlarge

^$1,731.⁰⁰ each item# ACM-EPI41 & FREE SHIPPING COUPON in the lower 48 states

normally ships within 1 working day


SPECIFICATIONS:
Model:	Coilmac-EPI41
Coil Pitch:	4:1
Punching Length:	13" (53 holes) with open ends for longer sizes
Punch:	electric
Disengaging Dies:	5 dies
Suggested Punching Capacity:	Up to 25 sheets for 20 lbs paper Up to 2.6mm for hardboard (28-sheet equivalent thickness)
Hole Size :	Round (4mm)
Inserting:	Electric (with built-in Heavy-Duty Electric Roller)
Suggested Binding Capacity:	Up to 7/8" (electric) Up to 2" (manual)
Foot Switch for roller :	Included
Crimpers:	Included
Side Margin Control:	included
Depth Margin Control:	included
Construction:	metal
Weight / volume:	75 lbs & 2.9 CbFt
Warranty:	1 Year
