FEATURES: |
| OVAL holes: Special 4mm x 5mm oval holes. The first & only equipment of its class to offer this advanced feature. Makes coil insertion much faster as compared to standard round holes. |

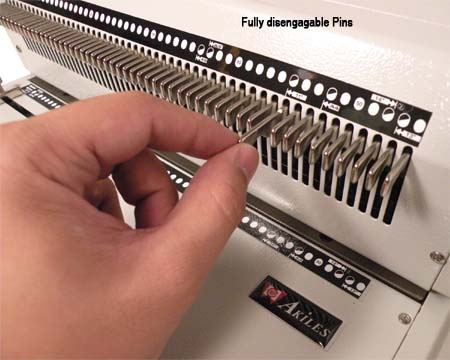

| FULLY Disengageable Pins: For a completely clean & professional punching of any paper size, all 54 pins can be independently pulled & disengaged. |
| LETTER 4:1 pitch (0.248”): This revolutionary 0.248” coil pitch is specifically designed to give you 44 evenly-centered holes in an 11” sheet, which provides the most ideal hole to edge-of-sheet margins and easier coil insertion. Hole pattern is 100% compatible with STANDARD 4:1 pitch coils. |
| Free Coil Crimpers |
| All Electric Operation: Powerful punching & inserting capability with a simple press of foot pedal. |
| Extended Single Punching Length (13"): With open ends & continuous punch guide to easily punch documents of any length (up to 26"). |
| High Volume Punch Capacity: Suggested up to 25-sheet* for 20 lbs paper, or 2.6mm (28-sheet equivalent)** for hardboard, in 13" length (53 holes). |
| Super Strength Punch Mechanism with exclusive “Precision Guiding System" Blade Set: Cast-hardened & heat-treated steel dies provide superior strength & hardness. Exclusive “precision guiding system" guarantees a sharp & clean perforation everytime. |
| Electric Reverse (Anti-Jam) Function: For trouble-free punching. |
| Full Length Heavy-Duty Electric Coil Inserter with Double Roller Mechanism: 11-3/8" EPDM roller provides high friction and durability, making this inserter one of the easiest-to-use & most durable. Front-mounted roller position gives operator greater control & improves efficiency. Foot-pedal operated. Plastic & Metal coil compatible. |
| Industrial-Grade Roller Motor: Heavy-Duty motor (3 times heavier-duty than other similar machines in its class). |

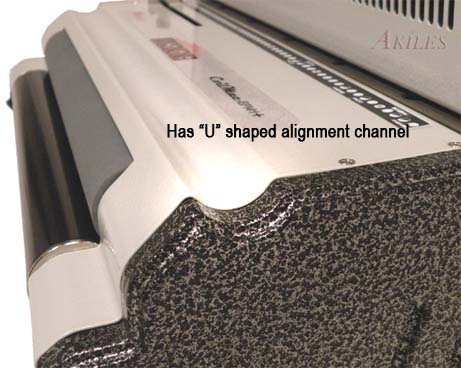

| U-shaped Alignment Channel: Assists the operator to properly shape the document’s spine, for faster & easier coil insertion. |
| Side Margin Control: Provides an evenly centered punch for all document sizes. |
| Punching Margin Control: Provides the correct punch-margin-depth for each coil size and maximizes the document's tear resistance. |
| Open Throat and Continuous Punch Guide: For an easy alignment and punching of longer documents up to 26". |
| Rugged ALL Metal Construction: Makes it the most reliable & durable coil binding system in its class. |
| Extra-High-Capacity Waste Drawer |
| 6 Height-Adjustable Non-Skid Metal Feet |
| ISO9001 & 14001 Quality: Manufactured under ISO9001 & 14001 guidelines for highest quality control & environmental management standards. |
| Includes Coil Diameter Selector |
