Coilmac er41

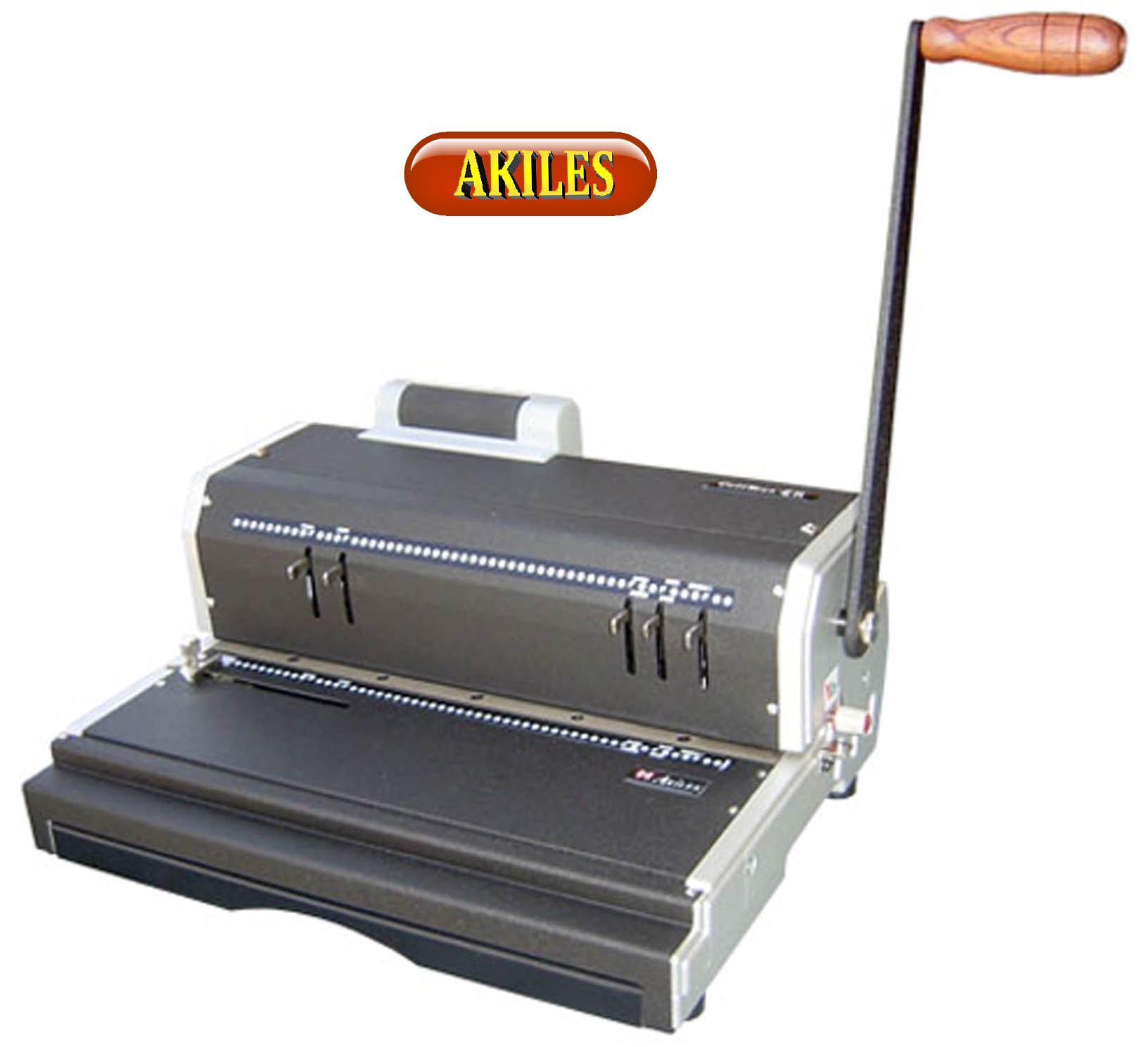

Heavy Duty Akiles 13" Coilmac-ER manual Punching & Binding Machine with Built-In Electric Coil Inserter for: 4:1 Plastic Coil Bindings & Spines

A fully featured, heavy-duty manual coil punching machine, with a built-in Electric coil inserter.

akiles products
akiles coilmac er roller
click images to enlarge
akiles coilmac-er
akiles coilmac-er41
FEATURES:
Round Holes: Standard 4mm round holes.
5 Disengageable Pins: Specially designed disengageable positions guarantee a clean punch with most standard paper sizes, making the CoilMac-ER very simple to use.
STANDARD 4:1 Pitch (0.250”): Standard pitch for coil binding. Punches 43 holes in a 11” sheet.
Extended Single Punching Length (13"): With open ends & continuous punch guide to easily punch documents of any length (up to 26").
High Volume Punch Capacity: Suggested up to 20-sheet* for 20 lbs paper, or 2.6mm (28-sheet equivalent)** for hardboard, in 13" length (53 holes).
Super Strength Punch Mechanism with exclusive “Precision Guiding System" Blade Set: Cast-hardened & heat-treated steel dies provide superior strength & hardness. Exclusive “precision guiding system" guarantees a sharp & clean perforation everytime.

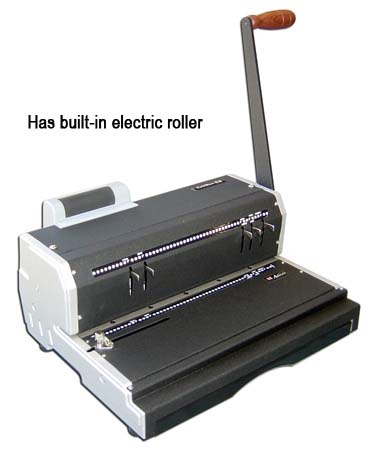

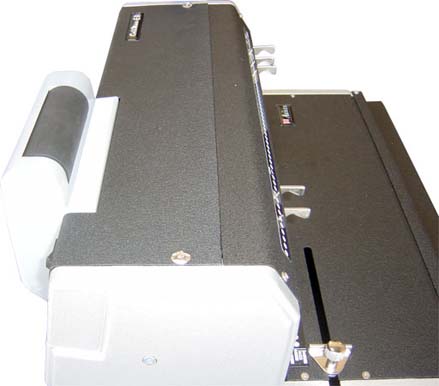

Top Electric Roller Coil Inserter (Foot Pedal Operated): This easy to use and durable roller makes coil inserting surprisingly fast and easy. It is strategically placed on the left side of the machine so your coil will clear the punch handle while you are inserting.
Side Margin Control: Provides an evenly centered punch for all document sizes.
Punching Margin Control: Provides the correct punch-margin-depth for each coil size and maximizes the document's tear resistance.
Open Throat and Continuous Punch Guide: For an easy alignment and punching of longer documents up to 26".
Rugged ALL Metal Construction: Makes it the most reliable & durable coil binding system in its class.
Large Waste Drawer and Non-Skid Feet
ISO9001 & 14001 Quality: Manufactured under ISO9001 & 14001 guidelines for highest quality control & environmental management standards.
Includes Coil Diameter Selector
$428.07 each item# ACM-ER41
Quantity:
normally ships within 1 working day

SPECIFICATIONS:
Model: Coilmac-ER
Coil Pitch: 4:1
Punching Length: 13" (53 holes) with open ends for longer sizes
Punch: manual
Disengaging Dies: 5 dies
Suggested Punching Capacity: Up to 20 sheets for 20 lbs paper
Up to 2.6mm for hardboard
(28-sheet equivalent thickness)
Hole Size : Round (4mm)
Inserting: Inserting - Electric (with built-in Electric Roller)
Suggested Binding Capacity: Up to 7/8" (electric)
Up to 2" (manual)
Crimpers: Not included - suggest item ACP minimum
Side Margin Control: included
Depth Margin Control: included
Construction: metal
Weight / volume: 38 lbs & 2.5 CbFt
Warranty: 1 Year
