2 rolls of film
Akilies CoilMac-EX41+ (plus) Electric Punch & Coil Binding Machine All-In-One Including Inserter and True Pitch .248" Oval Holes for 4:1 Coil

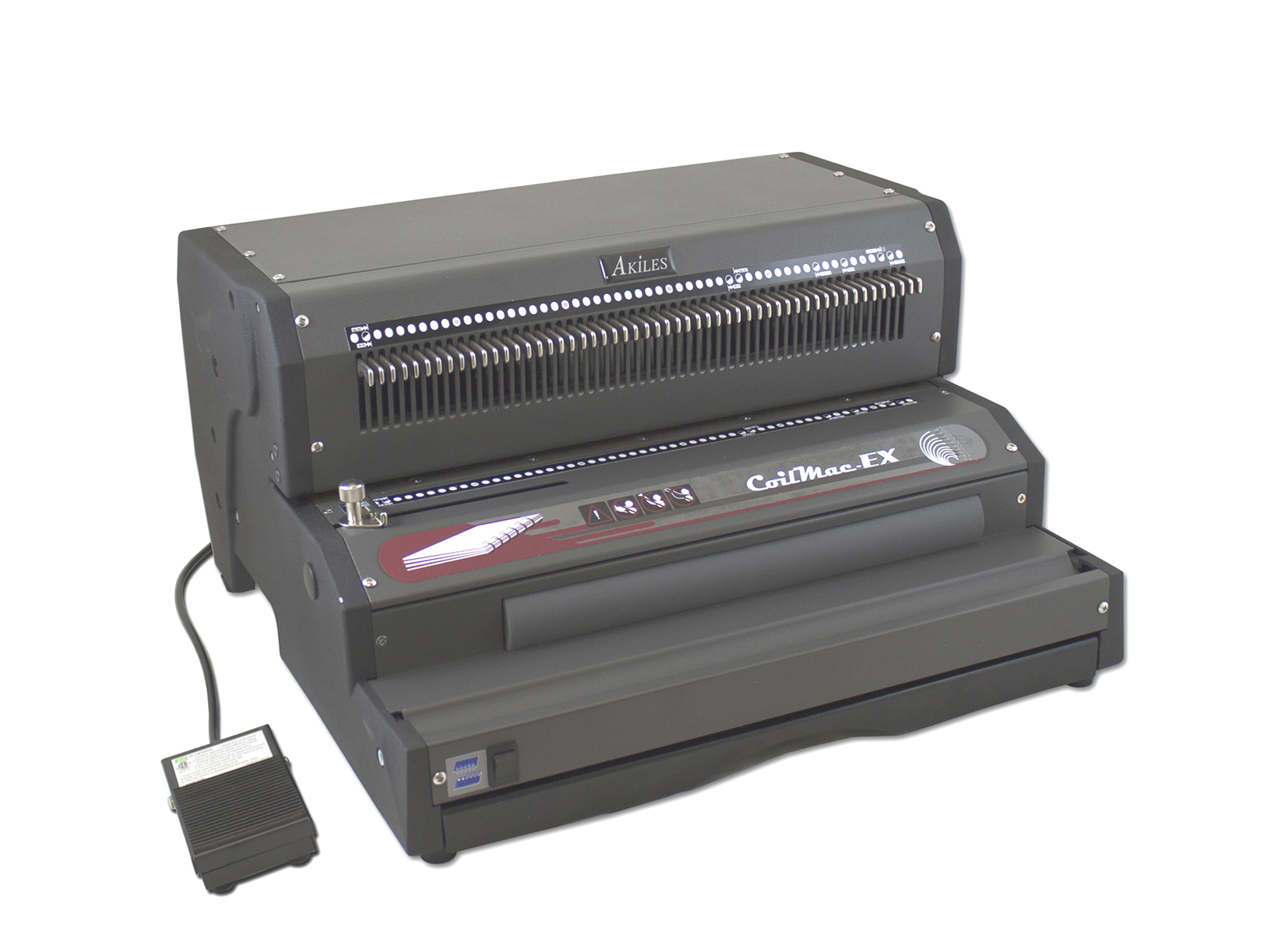

CoilMac-EX41+ Coil Binding Machine

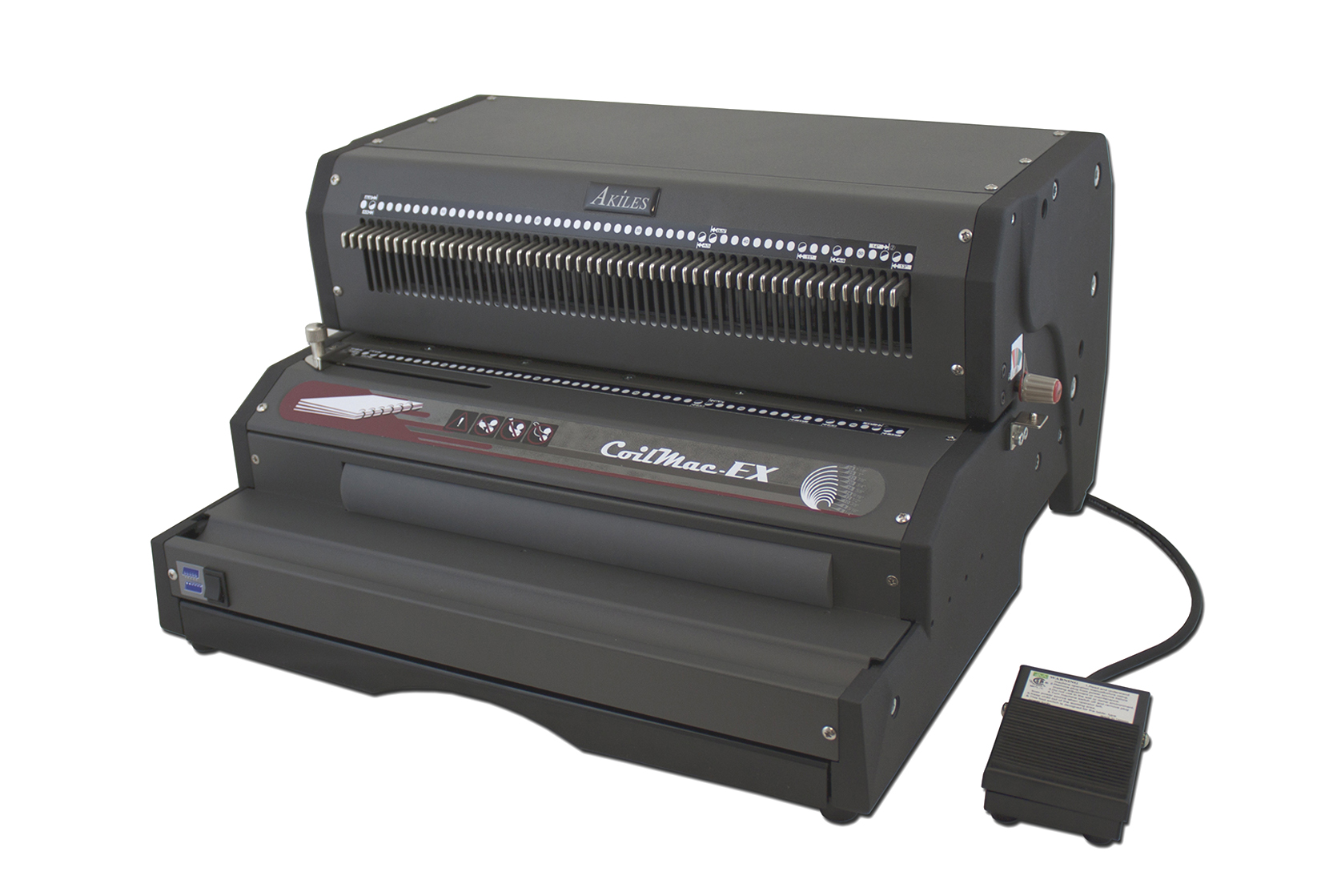

CoilMac-EX41+ Coil Binding Machine

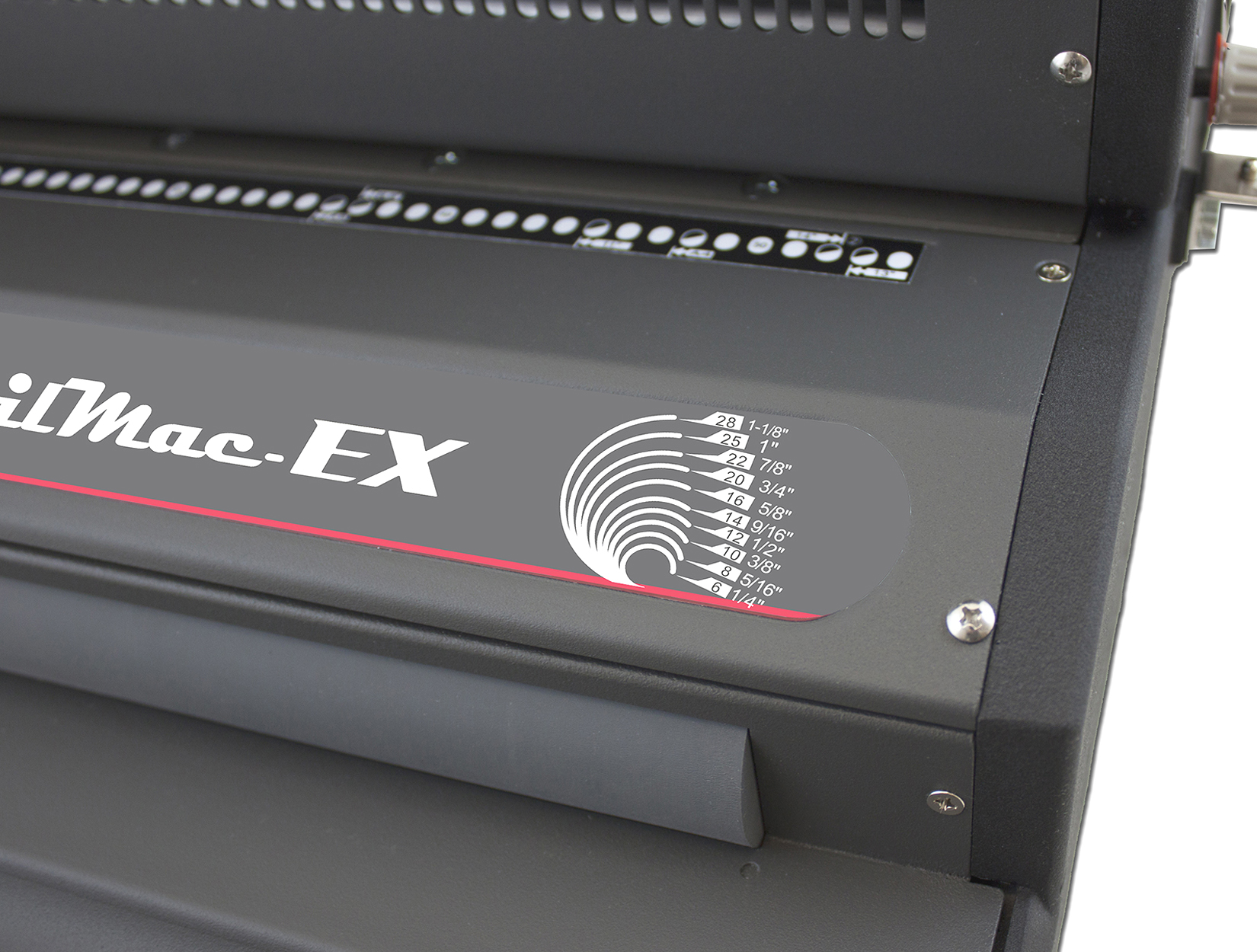

CoilMac-EX41+ Coil Selector Gauge

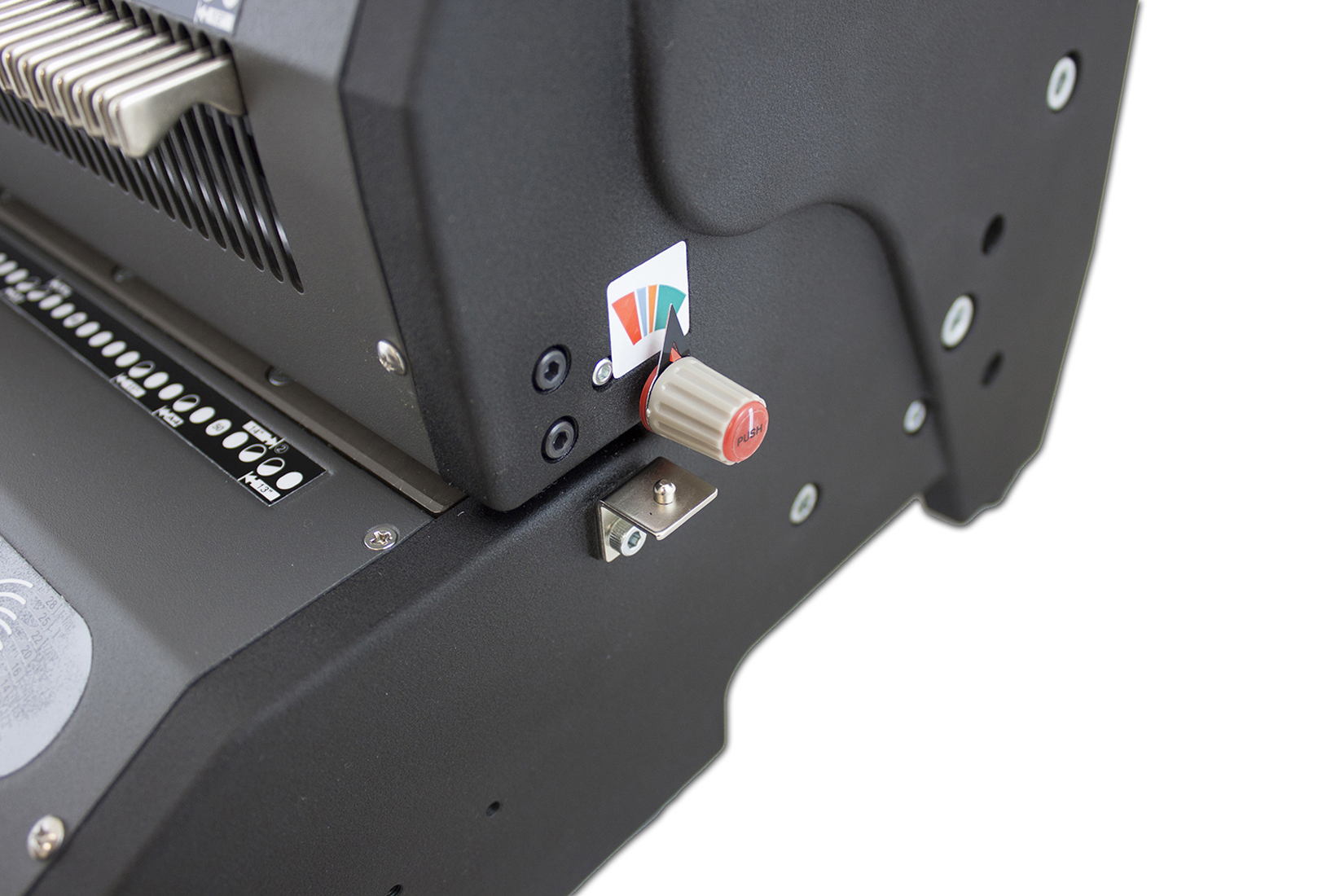

CoilMac-EX41+ Depth Margin Control

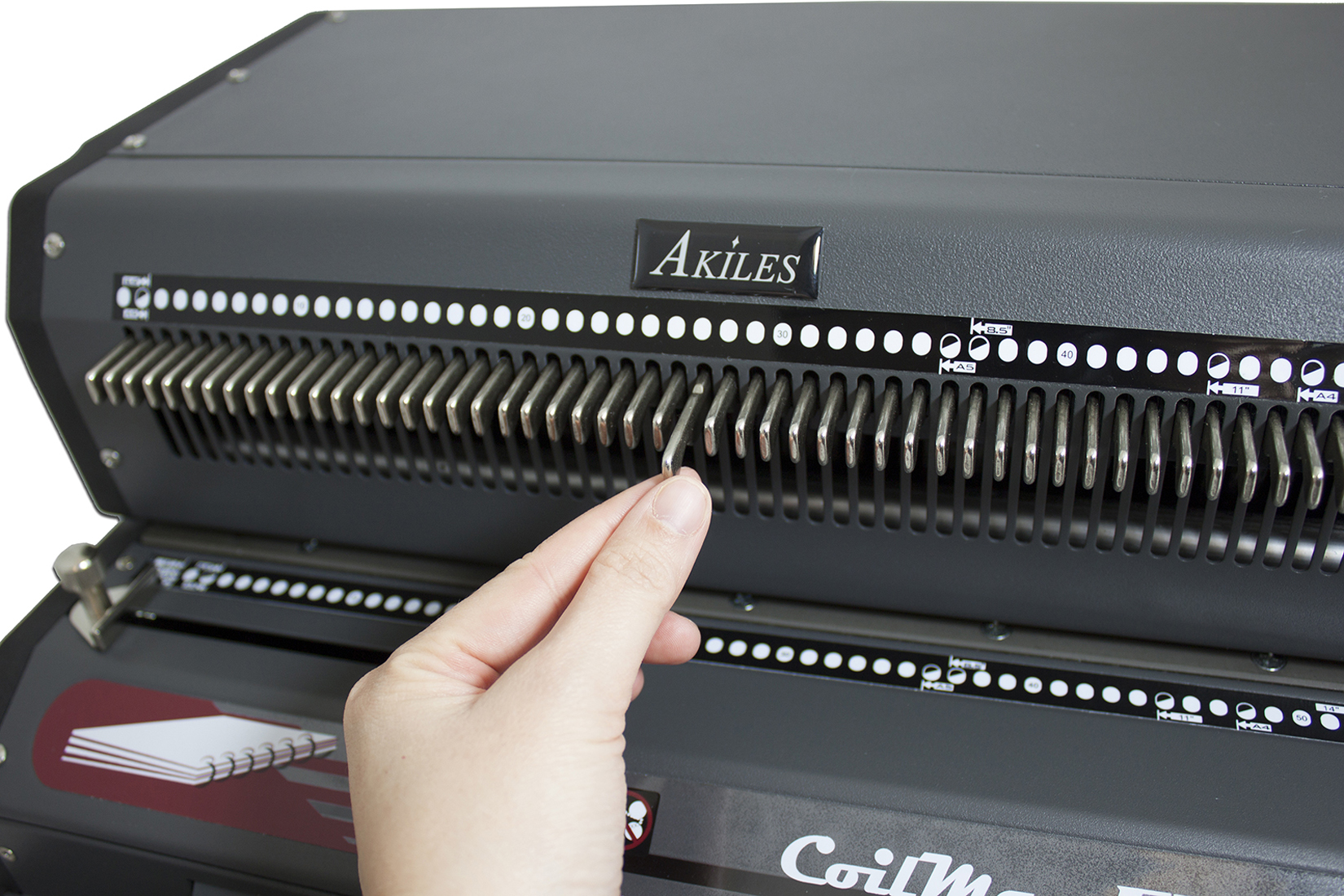

CoilMac-EX41+ Disengaging Dies

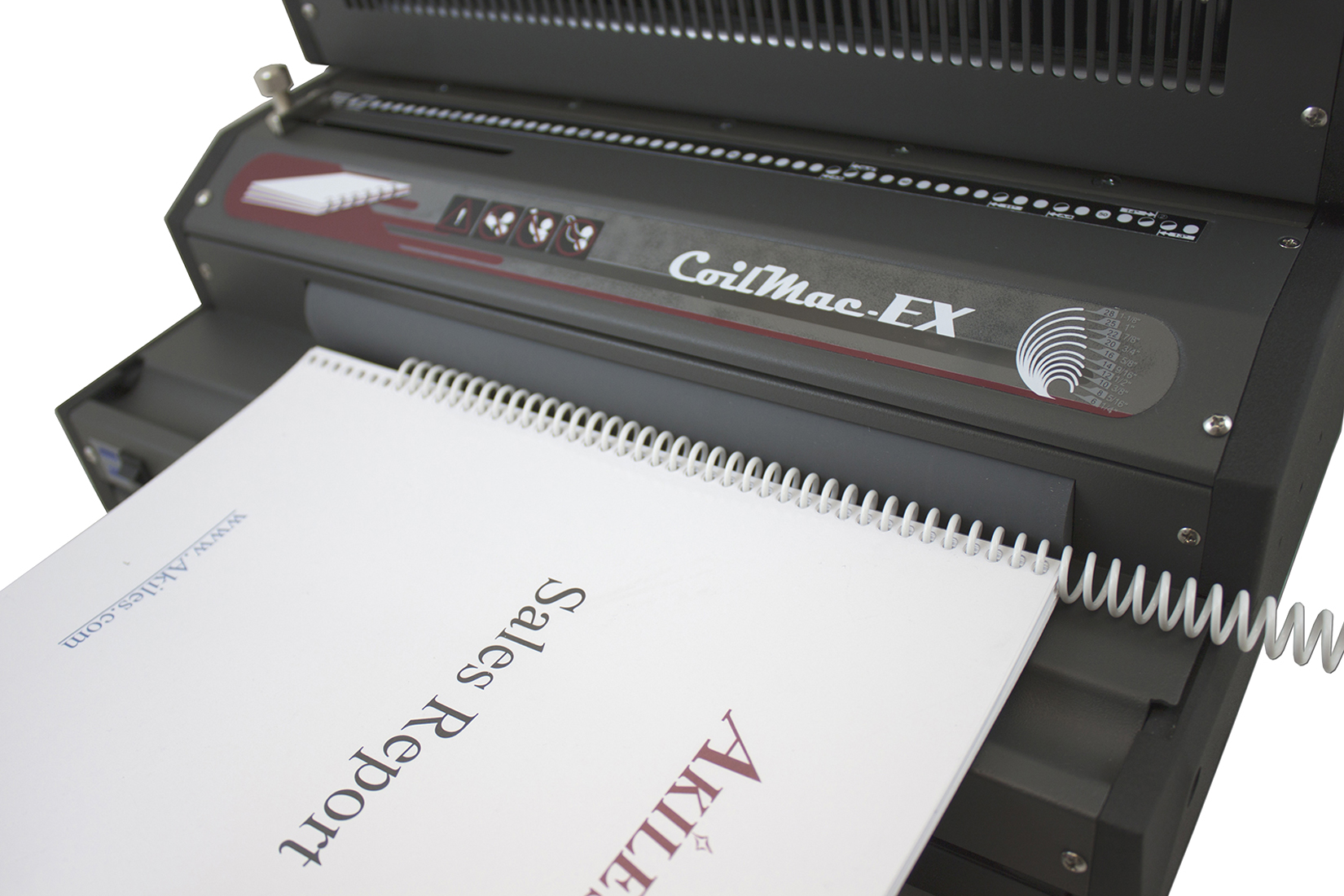

CoilMac-EX41+ Electric Inserter

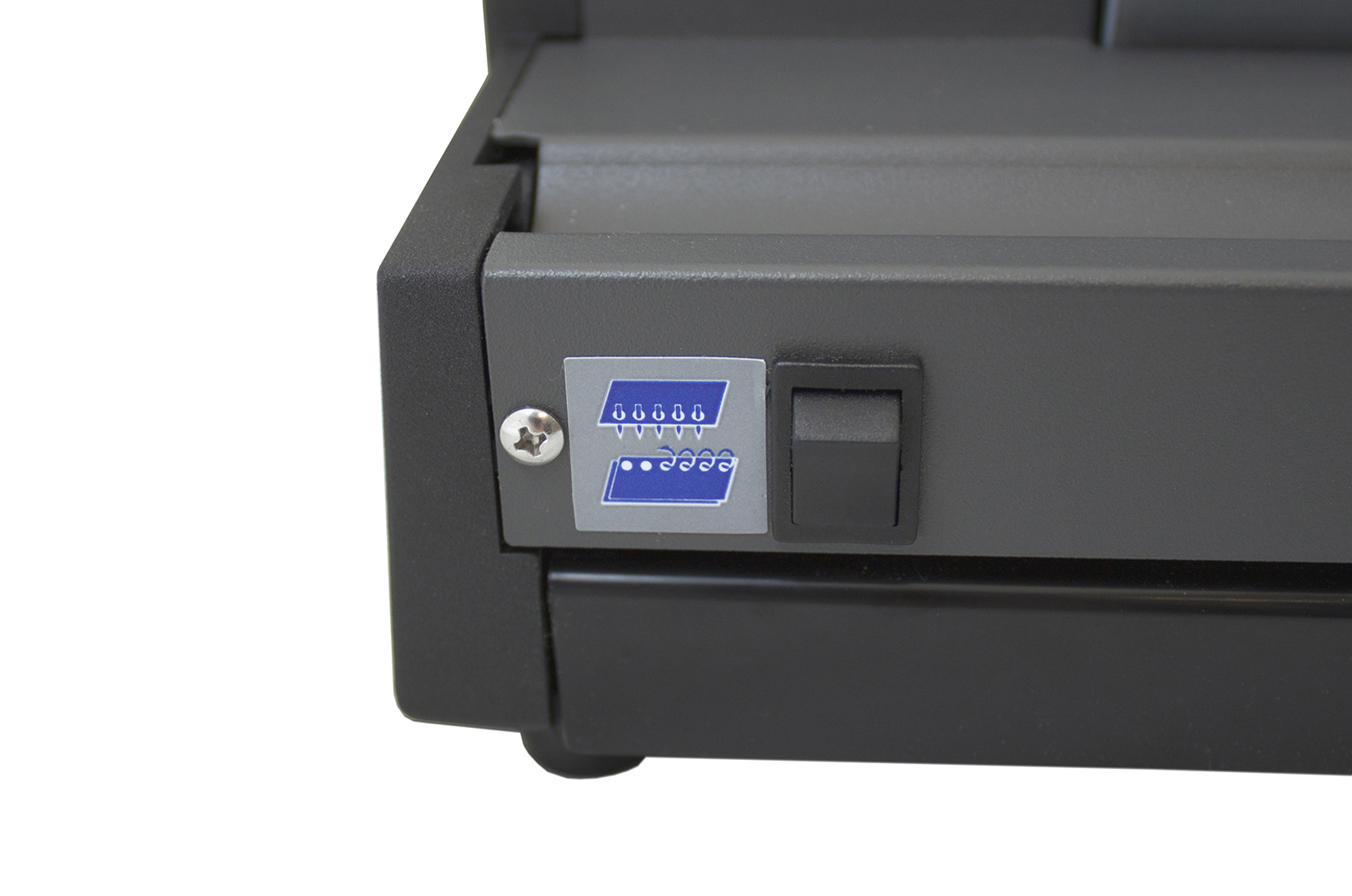

CoilMac-EX41+ Inserter/Punch Toggle Switch
CoilMac-EX41+ Side Margin Control

The Akiles CoilMac-EX41+ is a heavy-duty electric coil binding machine and punch for 4:1 pitch coil spines using oval holes for faster inserting and making pages turn much easier. Hole pattern is 100% compatible with standard 4:1 pitch coils. With its heavy duty punch motor and built-in electric coil inserter, the CoilMac-EX41+ makes coil binding fast, easy, convenient and professional. This binding machine is perfect for bindery, print shop, copy center, corporation, advertising agency, school, office, home and more.


item# ACM-EX41+

High Volume Punch Capacity: Suggested up to 25-sheet for 20 lbs paper, or 2.6mm (28-sheet equivalent) for hardboard, in 13-inch length (53 holes)
Extended Single Punching Length (13”): With open ends to punch documents up to 26″
Super Strength Punch Mechanism with exclusive Precision Guiding System Blade Set: Cast-hardened & heat-treated steel dies provide superior strength
Full Length Heavy-Duty Electric Coil Inserter with Double Roller Mechanism; Foot-pedal operated; Plastic & Metal coil compatible
Industrial-Grade Roller Motor: 3 times heavier-duty than other similar machines in its class
U-shaped Alignment Channel
All Electric Operation
All 54 Dies can be Independently Disengaged for Shorter Documents
Electric Reverse (Anti-Jam) Function
Rugged ALL Metal Construction
True Pitch: 4:1 (0.248”)
Operation: Electric Punching; Inserting is Electric Up to 1″ and Up to 2″ (manual)
Oval Hole Size (4 x 5mm)
Crimpers Included (hand held)
Includes Coil Diameter Selector, Side Margin Control and Punching Margin Control
Extra-High-Capacity Waste Drawer
CE Certification and ISO9001 & 14001 Quality
Weight 50 lbs
1 Year Factory Warranty
Model: Coilmac-EX41+
Coil Pitch: True .248" for 4:1 coil
Hole Punch: 4 x 5mm oval holes
Closing Capacity: Up to 1" diameter electric and 2"manual
Single Punching Capacity: Electric: Up to 20 sheets of 20lbs bond paper
Punching Length: 13.5" (54 dies)
Disengaging Dies: All 54 dies
Closing Mechanism: Electric Inserter
Coil Diameter Selector: Included
Weight: 50 lbs
Warranty: 1 Year
