Akiles

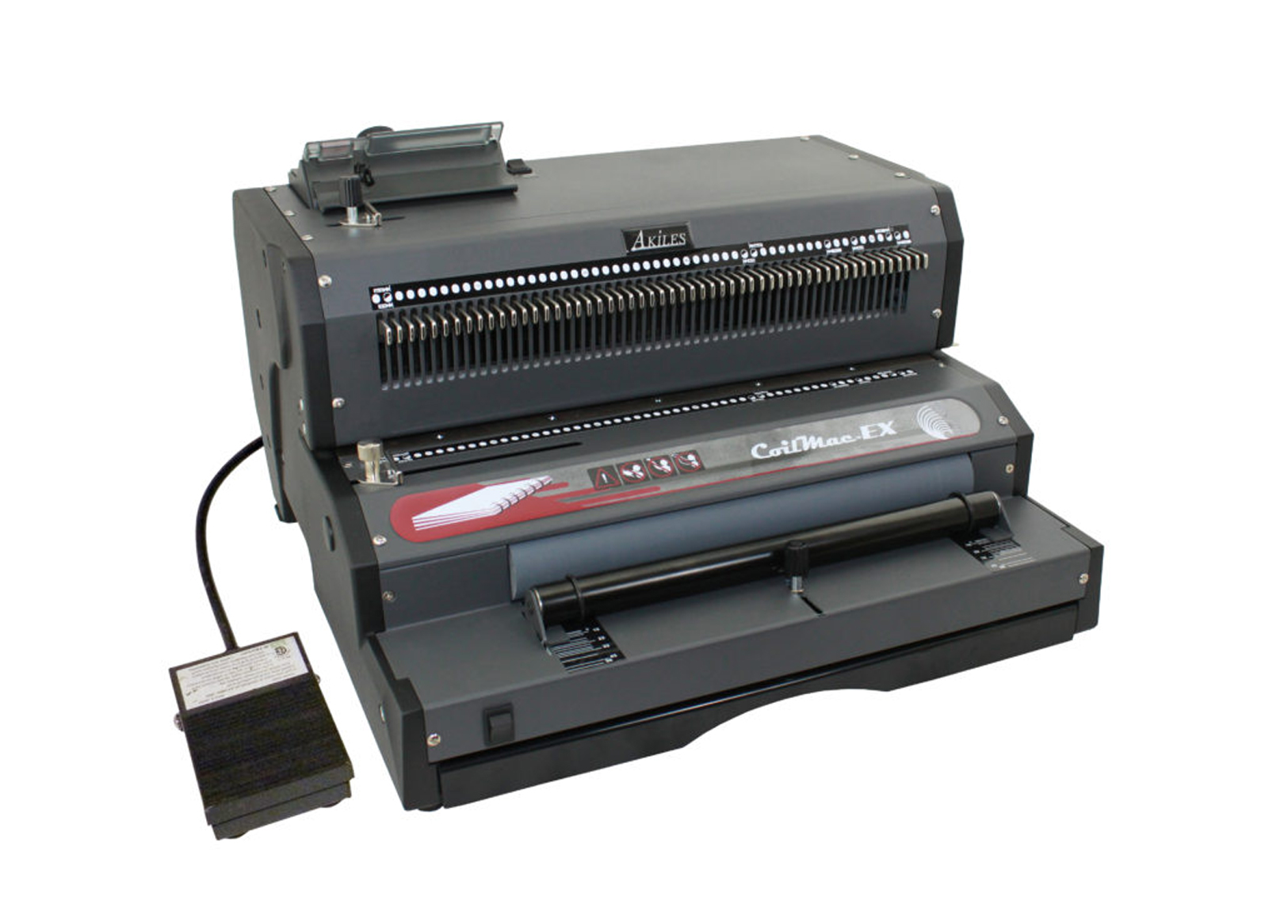

CoilMac-EX Pro All-In-One Electric Coil Punch, Electric Inserter, and Electric Coil Crimper

For the first time ever, Akiles introduces a true electric all-in-one coil binding machine. The CoilMac-EX Pro combines an Electric Punch, Electric Coil Inserter and Electric Coil Crimper to create our most complete coil binding machine ever.

FEATURES:

All Electric Operation: Powerful punching, inserting and crimping capabilities in one machine.

Extended Single Punching Length (13”): With open ends & continuous punch guide to easily punch documents of any length (up to 26″).

High Volume Punch Capacity: Suggested up to 25-sheet for 20 lbs paper, or 2.6mm (28-sheet equivalent) for hardboard*, in 13” length (53 holes).

Super Strength Punch Mechanism with exclusive “Precision Guiding System” Blade Set: Cast-hardened & heat-treated steel dies provide superior strength & hardness. Exclusive “precision guiding system” guarantees a sharp & clean perforation every time.

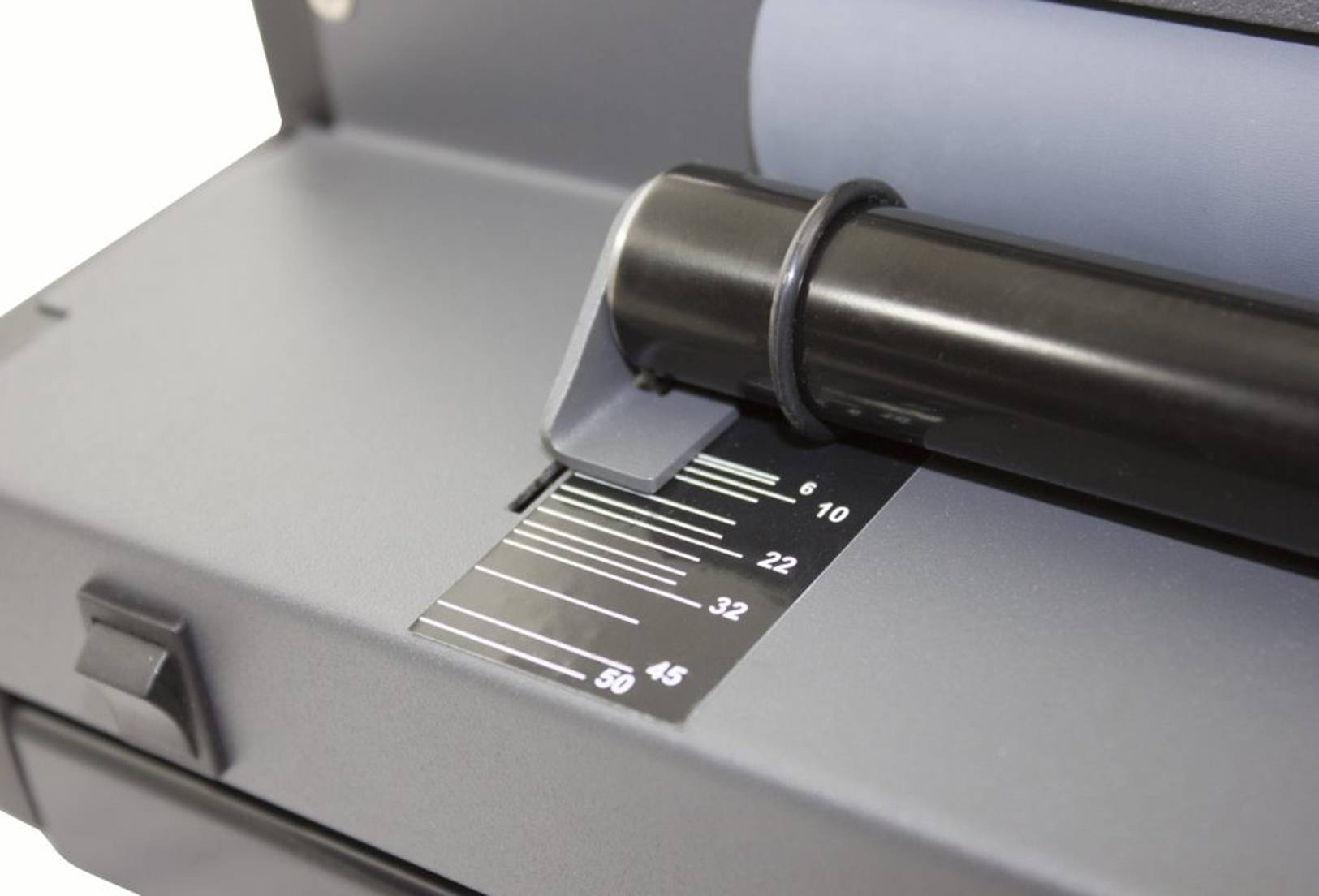

Full Length Heavy-Duty Electric Coil Inserter with Double Roller Mechanism: Dual roller system with an adjustable bottom roller makes it simple to insert small and large coils..

Industrial-Grade Roller Motor: Heavy-Duty motor (3 times heavier-duty than other similar machines in its class).

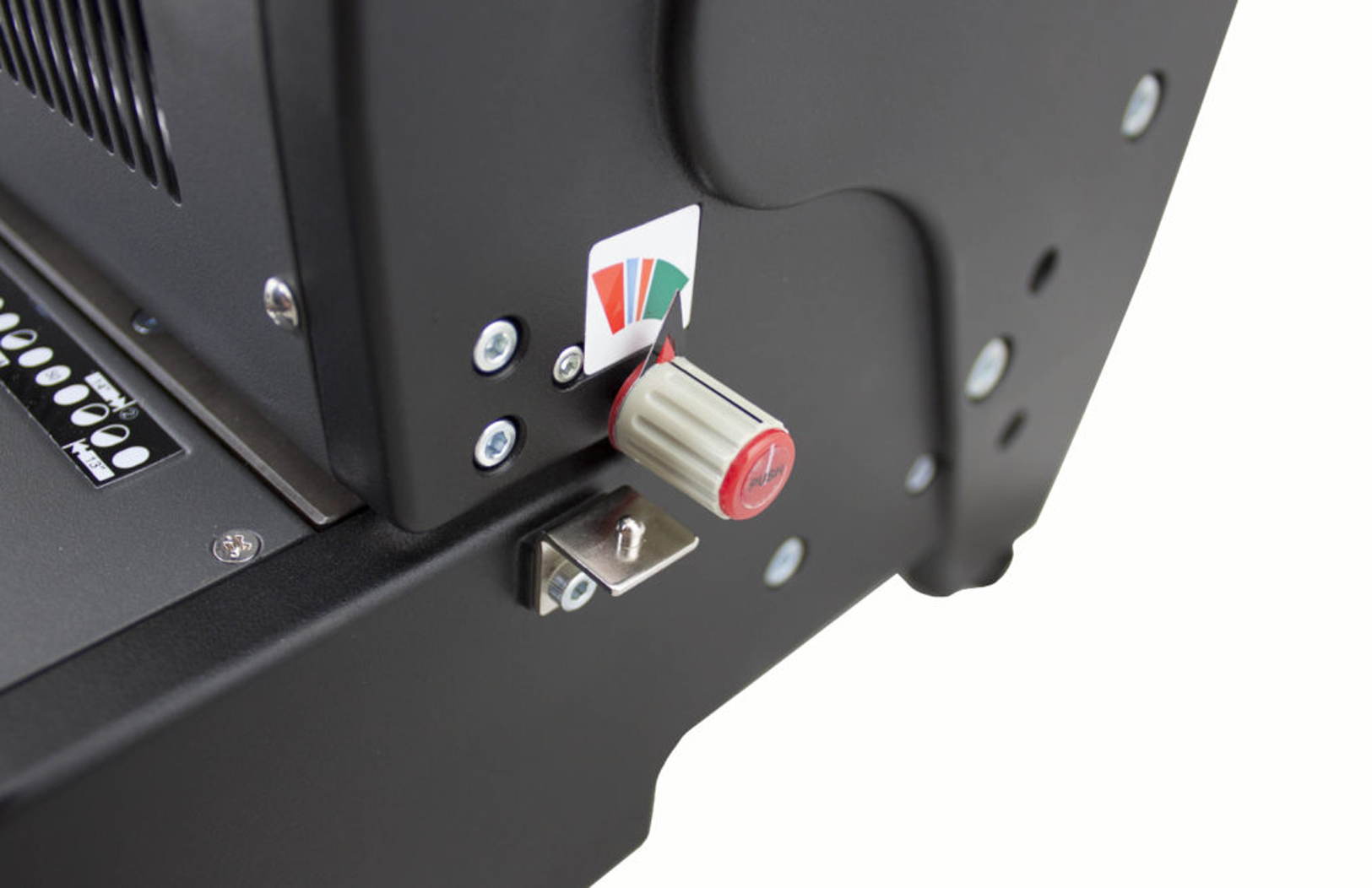

Depth Margin Control: 4 adjustable settings, provides the correct punch margin depth for each coil size and maximizes the document’s tear resistance.

Side Margin Control: Provides an evenly centered punch for all document sizes.

Open Throat and Continuous Punch Guide: For an easy alignment and punching of longer documents up to 26”

Rugged ALL Metal Construction: Makes it the most reliable & durable coil binding system in its class.

Included Coil Diameter Selector: Helps you pick the correct coil size for your project.

1 year manufacture warranty. Located in USA.

click images to enlarge

^$1399 each item# ACM-EXPRO

normally ships within 1 working day

SPECIFICATIONS:
Model:	Coilmac-EXPRO	Binding Capacity:	Up to 2″ (50 mm)
Coil Pitch:	Letter 4:1 (0.248")	Crimpers:	Electric (Foot Pedal)
Punching Length:	13.5" (53 holes) with open ends for longer sizes	Side Margin Control:	included
Punch:	electric	Depth Margin Control:	included
Disengaging Dies:	All 54	Construction:	metal
Suggested Punching Capacity:	Up to 25 sheets for 20 lbs paper Up to 2.6mm for hardboard (28-sheet equivalent thickness)	machine dimensions:	18″ W x 16″ D x 10″ H
Hole Size :	Oval (4mm x 5mm)	Weight:	55 lbs
Foot Switch :	Included	Warranty:	1 Year
