Akiles 13" CoilMac-M+ Plus Manual Punching Binding Machine Oval Hole 4:1 .248 Pitch Plastic Coil Bindings Spines Where To Buy ACM-M41+ Online

	Oregon Laminations Company Toll Free 1-800-574-9814 store hours: 8am to 5pm M-F Pacific Time Zone

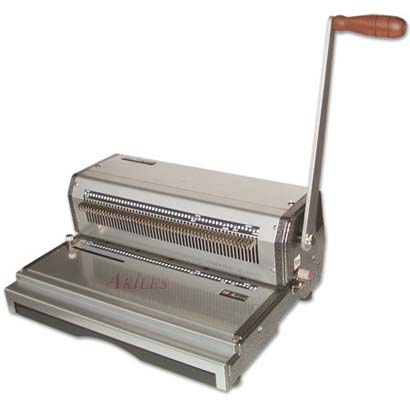

Akiles 13" Heavy Duty Coilmac-M-plus manual Punching & Binding Machine with EZ Inserting Table for: 4:1 Plastic Coil Bindings & Spines with Oval holes & .248 real pitch for 44 evenly spaced holes in a typical 11" binding edge

Akiles CoilMac-M renders efficiency and productivity. Its high quality components and full range of functions make it the most complete and durable equipment in its class, and one of the easiest to operate. Akiles CoilMac-M is undoubtedly the ideal partner for your important coil binding jobs.

FEATURES:

OVAL holes: Special 4 x 5mm oval holes. The first & only equipment of its class to offer this advanced feature. Makes coil insertion much faster as compared to standard round holes.

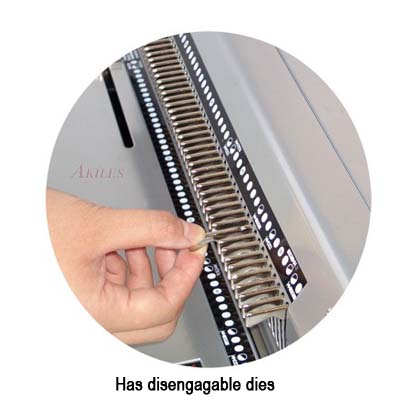

FULLY Disengageable Pins: For a completely clean & professional punching of any paper size, all 54 pins can be independently pulled & disengaged.

LETTER 4:1 pitch (0.248"): This revolutionary 0.248” coil pitch is specifically designed to give you 44 evenly-centered holes in an 11” sheet, which provides the most ideal hole to edge-of-sheet margins and easier coil insertion. Hole pattern is 100% compatible with STANDARD 4:1 pitch coils.

Extended Single Punching Length (13"): With open ends & continuous punch guide to easily punch documents of any length (up to 26").

High Volume Punch Capacity: Suggested up to 20-sheet* for 20 lbs paper, or 2.6mm (28-sheet equivalent)** for hardboard, in 13" length (53 holes).

Super Strength Punch Mechanism with exclusive “Precision Guiding System" Blade Set: Cast-hardened & heat-treated steel dies provide superior strength & hardness. Exclusive “precision guiding system" guarantees a sharp & clean perforation everytime.

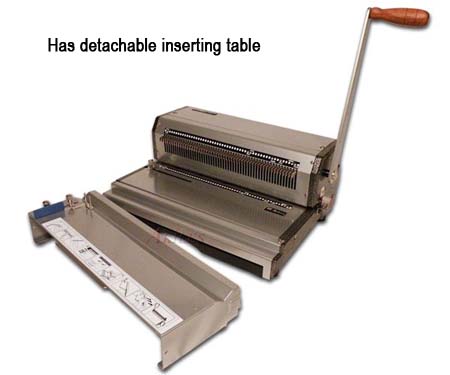

Exclusive EZ Inserting TableTM with Detachable Design: Expedites the inserting of coil into the document; reducing costs and binding time. Detachable design allows the Punch & Inserting Table to be placed side-by-side, allowing one person to punch the paper while another person to insert the coils… a great time-saver on those time-sensitive binding projects.

Side Margin Control: Provides an evenly centered punch for all document sizes.

Punching Margin Control: Provides the correct punch-margin-depth for each coil size and maximizes the document's tear resistance.

Open Throat and Continuous Punch Guide: For an easy alignment and punching of longer documents up to 26".

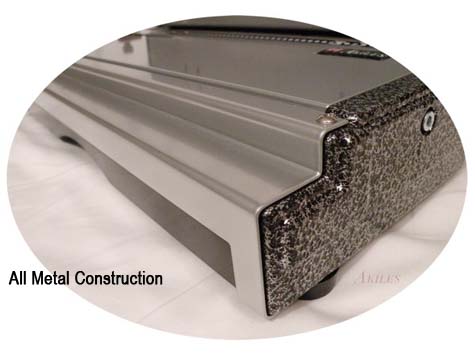

Rugged ALL Metal Construction: Makes it the most reliable & durable coil binding system in its class.

Large Waste Drawer and Non-Skid Feet

ISO9001 & 14001 Quality: Manufactured under ISO9001 & 14001 guidelines for highest quality control & environmental management standards.

Includes Coil Diameter Selector

click images to enlarge

^$408.⁸⁵ each item# ACM-M41+

normally ships within 1 working day

SPECIFICATIONS:
Model:	Coilmac-M-plus
Coil Pitch:	4:1 (.248")
Punching Length:	13" (54 holes) with open ends for longer sizes
Punch:	manual
Disengaging Dies:	all 54 dies
Suggested Punching Capacity:	Up to 20 sheets for 20 lbs paper Up to 2.6mm for hardboard (28-sheet equivalent thickness)
Hole Size :	Oval (4mm x 5mm)
Inserting:	manual with EZ Inserting Table
Suggested Binding Capacity:	Up to 2" (manual insert)
Crimpers:	Not included - suggest item ACP minimum
Side Margin Control:	included
Depth Margin Control:	included
Construction:	metal
Weight / volume:	35 lbs & 2.50 CbFt
Warranty:	1 Year
